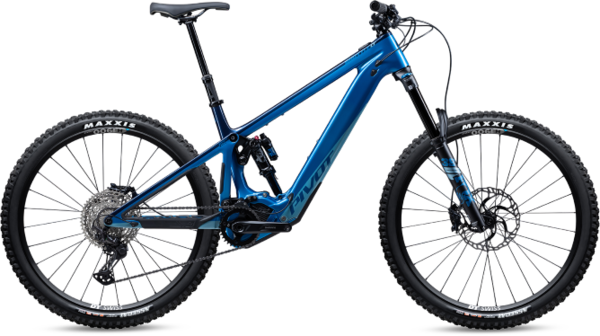

Pivot Cycles Shuttle LT Ride SLX/XT

Pivot Cycles Shuttle LT Ride SLX/XT
  • Color: Bass Boat Blue Tritone
  • Color: Northern Lights Green
$9,900.00
Color:
Bass Boat Blue Tritone
Size:
Large
Please select options
NOTE: "In store" availability on bicycles includes some bikes still in boxes. Please contact us via the live chat icon at the bottom of the page or call us at (303)444-4196 to confirm build status. ----------------This item is not permitted to be shipped, however it can be purchased online and picked up at your convenience. We also offer $25 regional Home Delivery for any purchase.

To use our $25 Boulder Area Delivery service, select it while viewing your cart or during the checkout process.
Please call us at 303-444-4196 with any compatibility questions! We are always happy to help.

Details

TOO MUCH IS JUST RIGHT
Race ready and ultra-refined, the new Shuttle LT is the hyper capable brainchild of the Pivot engineering team that delivered our EWS-proven Firebird. Pivot's deadly accurate combination of DW-Link suspension and proprietary carbon molding technology come together in a bike that embodies ambition.

MORE POWER WITH MORE FINESSE
Shimano's smooth, powerful, and lightweight drive system gets you to the top with ease while SLX 4-piston brakes clamping on massive 223mm front and 203mm rear rotors give you all the dominant stopping power you could ever need.

PRODUCT DETAILS
Get everything you need to know about the Shuttle LT.

- Full-Carbon Frame Constructed with- Pivot's Proprietary Molding Technology
- Flip Chip Geometry Customization
- Light, Efficient, and Powerful- Shimano Drive Unit
- Massive 756 Watt-hour- Battery
- 160mm Travel- DW-Link Suspension
- Trunnion Mounted Fox Float X Shock
- 170mm Fox 38 Fork with custom eMTB tune
- Ergonomic Power Button
- 85 Nm of Torque
- Integrated 756 Wh Battery
- USB-C Charging Port
- High Grip Maxxis Assegai Tires
- Full-size water bottle fits inside the front triangle
- 223mm Front and 203mm Rear Rotors
- Clean Internal Routing with Pivot Cable Port System

Geometry

Geometry Chart:
SizeSMMDLGXL
A Seat Tube Length (C-T) 37 cm 40 cm 43 cm 47 cm
B Top Tube Length 60 cm 62.3 cm 64.5 cm 67.2 cm
C Head Tube Length 11 cm 12 cm 13 cm 14 cm
D Head Tube Angle 64.5° 64.5° 64.5° 64.5°
E Seat Tube Angle (Eff.) 77° 77° 77.5° 78°
F Chainstay Length 43.9 cm 43.9 cm 43.9 cm 43.9 cm
G Bottom Bracket Height 35.7 cm 35.7 cm 35.7 cm 35.7 cm
H Bottom Bracket Drop 1.7 cm 1.7 cm 1.7 cm 1.7 cm
I Standover 69.4 cm 69.8 cm 70 cm 70.1 cm
J Wheelbase 122.9 cm 124.5 cm 128.1 cm 130.7 cm
Stack 63.1 cm 64 cm 64.9 cm 65.8 cm
Reach 44.9 cm 47.1 cm 49.1 cm 51.4 cm

Small: 5'2" - 5'8"
Medium: 5'7" - 6'0"
Large: 5'10" - 6'2'
X-Large: 6'1" +

Videos

Part Numbers

Option UPC MPN Store SKU
Bass Boat Blue Tritone / Large 196338094290 00SLTV129ASXA--BBTLGDRPINSA1 210000036729
