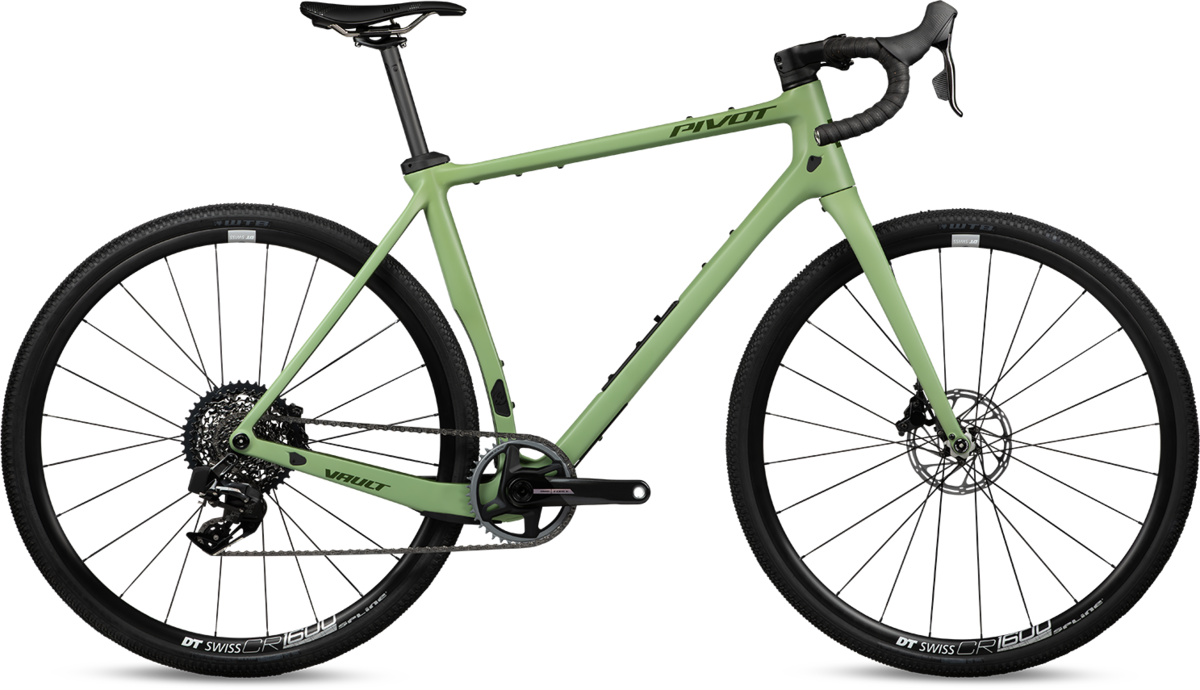

Pivot Cycles Vault V6 XPLR

Pivot Cycles Vault V6 XPLR
  • Color: Mossy Forest
  • Color: Stealth
$5,000.00
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable
NOTE: "In store" availability on bicycles includes some bikes still in boxes. Please contact us at (303)444-4196 to confirm build status. All E-bikes purchased will be charged an additional $15 battery recycling fee when picked up. ***This item is not permitted to be shipped, however it can be purchased online and picked up at your convenience.

Details

- Ultra-Light Hollow Core Carbon Frame
- Toolshed™ In-Frame Storage
- 700x50c Tire Clearance
- Low-Profile Patented Iso Flex – Optimized for Comfort
- Versatile Modern Geometry
- Carbon Fork Designed for Greater Compliance
- Adventure-Ready Frame Accessory Mounts
- Hidden Fender Mount
- Compatible With Narrow Q-Factor Cranks
- 2x Compatible with Removable Front Derailleur Mount
- UDH Derailleur Hanger and SRAM Transmission Compatible
- Versatile Cable Routing Options—Fully Integrated Headset Routing or Hassle-Free semi-integrated cable routing Via Pivot Cable Port System

Geometry
Sizes:
XXSXSSMMDLGXL
A: Seat Tube Length (C-T) 39.0 cm 43.0 cm 48.0 cm 50.0 cm 52.0 cm 54.0 cm
B: Top Tube Length (Eff.) 50.2 cm 53.6 cm 55.5 cm 58.6 cm 60.0 cm 62.0 cm
C: Head Tube Length 8.5 cm 11.0 cm 12.5 cm 15.0 cm 16.5 cm 20.0 cm
D: Head Tube Angle 69° 70° 70.4° 70.7° 70.8° 71°
E: Seat Tube Angle (Eff.) 75° 74.3° 73.8° 73° 73° 73°
F: Chain Stay Length 42.0 cm 42.0 cm 42.0 cm 42.0 cm 42.0 cm 42.0 cm
G: Bottom Bracket Drop 8.0 cm 7.8 cm 7.6 cm 7.5 cm 7.3 cm 7.3 cm
H: Standover Height 66.6 cm 70.8 cm 75.0 cm 77.2 cm 79.1 cm 81.5 cm
I: Wheelbase 100.0 cm 102.1 cm 103.4 cm 105.4 cm 106.9 cm 108.8 cm
J: Bottom Bracket Height 27.1 cm 27.3 cm 27.5 cm 27.6 cm 27.8 cm 27.8 cm
K: Stack 52.9 cm 55.4 cm 56.8 cm 59.2 cm 60.5 cm 63.9 cm
L: Reach 36.0 cm 38.0 cm 39.0 cm 40.5 cm 41.5 cm 42.5 cm
M: ATC 41.5 cm 41.5 cm 41.5 cm 41.5 cm 41.5 cm 41.5 cm
N: FO 5.2 cm 5.2 cm 5.2 cm 5.2 cm 5.2 cm 5.2 cm
O: Trail 7.9 cm 7.2 cm 6.9 cm 6.8 cm 6.7 cm 6.6 cm

Part Numbers

Option UPC MPN Store SKU
Mossy Forest / XX-Small / 700c 196338128803 00VLTV670AXPLR-MFGXXSTDHN 210000048923
Mossy Forest / X-Small / 700c 196338128827 00VLTV670AXPLR-MFGXSSTDHN 210000048925
Stealth / Large / 700c 196338129008 00VLTV670AXPLR-BLKLGSTDHN 210000048928
