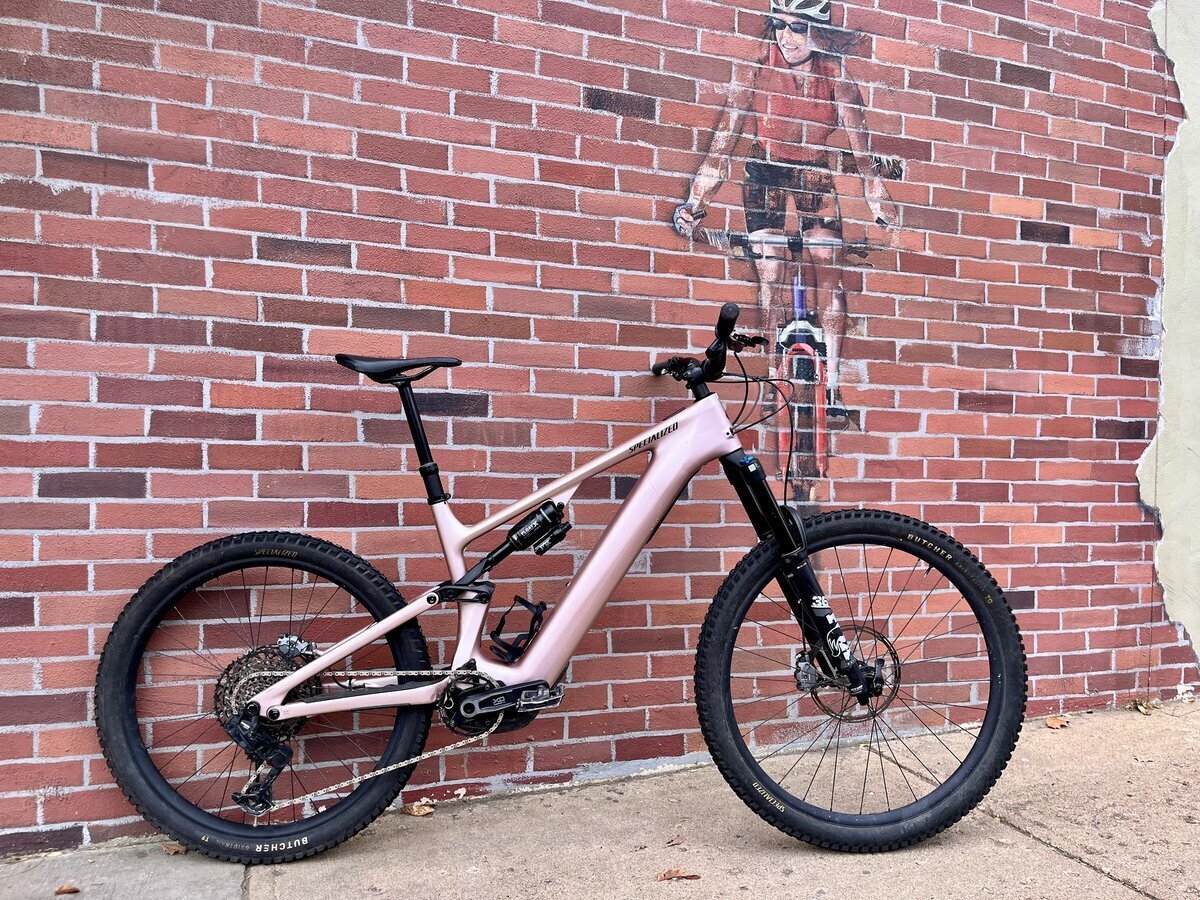

Specialized Turbo Levo 4 Comp - 2025 DEMO
$6,000.00 - $9,200.00
$8,500.00 - $9,200.00
Details
USED E-BIKES DO NOT QUALIFY FOR THE TAX CREDIT
The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
| Frame Size | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|
| Stack (mm/in) | 618mm (24.3") | 626mm (24.6") | 638mm (25.1") | 652mm (25.7") | 667mm (26.3") |
| Reach (mm/in) | 435mm (17.1") | 455mm (17.9") | 480mm (18.9") | 505mm (19.9") | 535mm (21.1") |
| Headtube Length (mm/in) | 95mm (3.7") | 103mm (4.1") | 117mm (4.6") | 132mm (5.2") | 149mm (5.9") |
| Headtube Angle (degrees) | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height (mm/in) | 350mm (13.8") | 350mm (13.8") | 350mm (13.8") | 350mm (13.8") | 350mm (13.8") |
| BB Drop (mm/in) | 29.5mm (1.2") | 29.5mm (1.2") | 29.5mm (1.2") | 29.5mm (1.2") | 29.5mm (1.2") |
| Trail (mm/in) | 132mm (5.2") | 132mm (5.2") | 132mm (5.2") | 132mm (5.2") | 132mm (5.2") |
| Fork Length (mm/in) | 577mm (22.7") | 577mm (22.7") | 577mm (22.7") | 577mm (22.7") | 577mm (22.7") |
| Fork Rake/Offset (mm/in) | 44mm (1.7") | 44mm (1.7") | 44mm (1.7") | 44mm (1.7") | 44mm (1.7") |
| Front Center (mm/in) | 765mm (30.1") | 789mm (31.1") | 820mm (32.3") | 851mm (33.5") | 888mm (35.0") |
| Chainstay Length (mm/in) | 435mm (17.1") | 435mm (17.1") | 435mm (17.1") | 435mm (17.1") | 435mm (17.1") |
| Wheelbase (mm/in) | 1200mm (47.2") | 1223mm (48.1") | 1254mm (49.4") | 1286mm (50.6") | 1323mm (52.1") |
| Top-Tube Length (mm/in) | 578mm (22.8") | 599mm (23.6") | 627mm (24.7") | 655mm (25.8") | 689mm (27.1") |
| Bike Standover Height (mm/in) | 753mm (29.6") | 754mm (29.7") | 753mm (29.6") | 758mm (29.8") | 761mm (30.0") |
| Seat Tube Length (mm/in) | 390mm (15.4") | 405mm (15.9") | 425mm (16.7") | 445mm (17.5") | 465mm (18.3") |
| Seat Tube Angle (degrees) | 77° | 77° | 77° | 77° | 77° |
| Saddle Height for Effective ST Angle (mm/in) | 690mm (27.2") | 735mm (28.9") | 780mm (30.7") | 825mm (32.5") | 870mm (34.3") |
| Max Seatpost Insertion (mm/in) | 274mm (10.8") | 289mm (11.4") | 313mm (12.3") | 337mm (13.3") | 357mm (14.1") |
| Min Seatpost Insertion (mm/in) | 80mm (3.1") | 80mm (3.1") | 80mm (3.1") | 80mm (3.1") | 80mm (3.1") |
| Crank Length (mm/in) | 155mm (6.1") | 155mm (6.1") | 155mm (6.1") | 155mm (6.1") | 155mm (6.1") |
| Handlebar Width (mm/in) | 780mm (30.7") | 800mm (31.5") | 800mm (31.5") | 800mm (31.5") | 800mm (31.5") |
| Stem Length (mm/in) | 40mm (1.6") | 40mm (1.6") | 40mm (1.6") | 40mm (1.6") | 40mm (1.6") |
| Saddle Width (mm/in) | 155mm (6.1") | 143mm (5.6") | 143mm (5.6") | 143mm (5.6") | 143mm (5.6") |
| Seatpost Length (mm/in) | 125mm (4.9") | 170mm (6.7") | 190mm (7.5") | 190mm (7.5") | 190mm (7.5") |
Rental Bikes are available for rent up until purchase.
Rental reservations will be carried out and the bike will be prepped for sale before the bike will be available to take home.
This process may take a few days after purchase date.
USED E-BIKES DO NOT QUALIFY FOR THE TAX CREDIT
Specs
| Frame | All new Levo 4 frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm |
|---|---|
| Fork | FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel |
| Rear Shock | FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment |
| Rims | Specialized 29F/27.5R, hookless alloy, 30mm inner width, tubeless ready |
| Hubs | Front: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h Rear: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h |
| Spokes | DT Swiss Industry |
| Tires | Front: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.3" Rear: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.3" |
| Crankset | SRAM S1000 Crankset, Integrated Guard, 55mm Chainline, 155mm |
| Chainrings | SRAM T-type ring, 34T |
| Shifters | SRAM AXS POD Controller |
| Rear Derailleur | SRAM S1000 Eagle Transmission Derailleur |
| Cassette/Freewheel | SRAM XS-1270 Transmission Cassette, 12spd, 10-52t |
| Chain | SRAM GX Eagle Transmission Flattop Chain |
| Brakes | SRAM Maven Bronze, 4-piston caliper, hydraulic disc |
| Handlebars | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, S2: 30mm, S3-S6:40mm Rise, 780mm Width |
| Tape/Grips | Specialized Trail Grips |
| Stem | Alloy Trail Stem, 35mm bar bore |
| Seatpost | X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm |
| Saddle | Bridge Comp, Hollow Cr-mo rails |
| Motor | All New Specialized 3.1 Motor, 101Nm torque, 666W power |
| Battery | 840wh battery |
| Controller/Display | All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app |
| Charger | Specialized 4amp charger |
* Subject to change without notice.
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Satin Champagne/Metallic Obsidian / S5 / 29-inch front / 27.5-inch rear | 95224-5605R | 210000052381 |
| Satin Champagne/Metallic Obsidian / S6 / 29-inch front / 27.5-inch rear | 95224-5606R |
