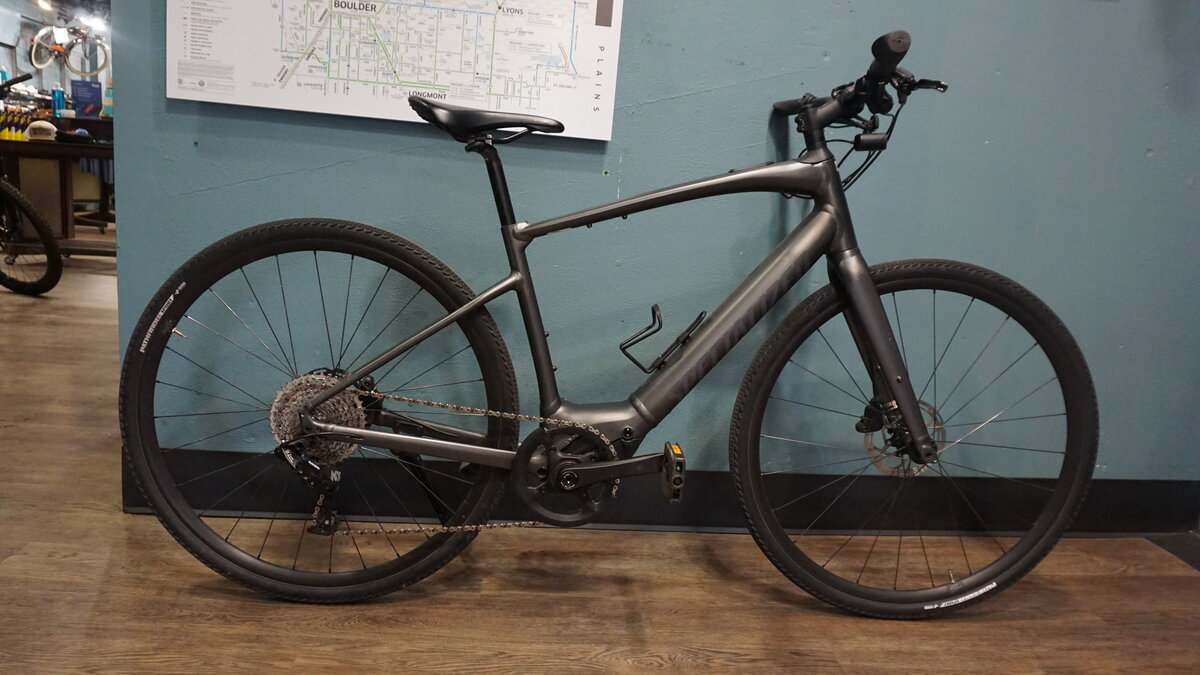

University Bicycles Turbo Vado SL 4.0 - DEMO
Details
There's no other e-bike out there with ride quality, range, and power like this, at a weight that's light enough to carry. The Turbo Vado SL 4.0 is best for workouts, riding beyond the beaten path and last-minute adventures. All you need to do is get on and go. Extra-bright, built-in lights in front and back mean you'll see and be seen. Plus, Pathfinder tires roll fast on or off the pavement with plenty of grip.
- 10-speed Shimano Deore shifting for reliable performance for the long haul.
- Bright, integrated front and rear lighting to see and be seen.
- Clean internal cable routing, fender/rack mounts, and reflective graphics.
- Fully integrated and secure Specialized 320Wh downtube battery w/optional Range Extender compatibility for up to 120 miles of range.
- Premium hydraulic disc brakes for maximum stopping power.
- Premium lightweight E5 Aluminum frame.
- Specialized SL 1.1 custom lightweight motor, peak 240W / 35Nm, 2x you rider amplification (180% assistance), assist up to 28mph.
| Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| BB Drop (mm) | 70 | 70 | 70 | 70 |
| B-B Height (mm) | 291 | 291 | 291 | 291 |
| Bike Stand-Over Height (mm) | 791 | 811 | 836 | 861 |
| Chain-Stay Length (mm) | 445 | 445 | 445 | 445 |
| Crank Length (mm) | 170 | 172.5 | 172.5 | 175 |
| Fork Length (full) (mm) | 390 | 390 | 390 | 390 |
| Fork Rake/Offset (mm) | 50 | 50 | 50 | 50 |
| Front-Center (mm) | 626 | 655 | 675 | 690 |
| Handlebar Width (mm) | 680 | 680 | 680 | 680 |
| Head-Tube Angle | 70 | 70.5 | 71 | 71.5 |
| Head-Tube Length (mm) | 130 | 161.5 | 194.5 | 230 |
| Reach (mm) | 397 | 419 | 433 | 442 |
| Saddle Width (mm) | 155 | 155 | 155 | 155 |
| Seat-Tube Angle | 73.5 | 73.5 | 73.5 | 73.5 |
| Seat-Tube Length (mm) | 415 | 446.5 | 494.5 | 535 |
| Seatpost Length (mm) | 350 | 350 | 350 | 350 |
| Stack (mm) | 542 | 574 | 607 | 643 |
| Stem Length (mm) | 60 | 75 | 75 | 90 |
| Top-Tube Length (horizontal) (mm) | 558 | 589 | 613 | 632 |
| Trail (mm) | 78 | 75 | 71 | 68 |
| Wheelbase (mm) | 1062 | 1091 | 1110 | 1126 |
Rental Bikes are available for rent up until purchase.
Rental reservations will be carried out and the bike will be prepped for sale before the bike will be available to take home.
This process may take a few days after purchase date.
Specs
| Frame | E5 Aluminum, bottom bracket motor mount, fully integrated downtube battery, internal cable routing, fender and front rack mounts, Smooth Welds |
|---|---|
| Fork | Rigid full aluminum disc, Boost™ 12x110mm, front- rack-compatible |
| Rims/Wheels | 700C disc, 22mm rim depth, 21mm internal width |
| Hubs |
Front: Specialized alloy front hub disc, sealed cartridge bearings, 12x110mm, Center Lock™, 24h Rear: Specialized alloy rear hub disc, Center Lock™, sealed cartridge bearings, 12x148mm, 28h |
| Spokes | DT Swiss Industry |
| Tires | Specialized Pathfinder Sport, 700x38c |
| Crankset | Praxis, Forged alloy M30, custom offset |
| Chainwheel | Praxis, 44T, 104BCD |
| Chain | KMC e11S, 11-speed w/ Missing Link™ |
| Rear Derailleur | SRAM NX, 11-speed |
| Rear Cogs | Sunrace, 11spd, 11-42t |
| Shifters | SRAM NX, 11-speed |
| Handlebars | Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm |
| Tape/Grips | Specialized Body Geometry Contour, lock-on |
| Stem | Specialized Stealth Stem, alloy, 14 deg, 31.8mm, integrated TCD mount |
| Brakes | Tektro HD-R290, hydraulic disc, 160mm |
| Pedals | Specialized Commuter w/ grip tape & reflectors |
| Saddle | Bridge Sport, Steel rails, 155mm |
| Seat Post | Specialized, alloy, dual-bolt, 25mm offset, 27.2mm |
| Accessories & Extras | Headlight Lezyne Ebike Hecto STVZO E65, 210Lumens, 12V; Taillight Specialized integrated saddle mount, LED Technology, 12V; Bell Simple bell |
* Subject to change without notice.
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Smoke/Black Reflective / Small | 93922-5102R | 210000045361 |
| Smoke/Black Reflective / Medium | 93922-5103R | 210000045359 |
| Smoke/Black Reflective / Large | 93922-5104R | 210000045357 |
| Smoke/Black Reflective / X-Large | 93922-5105R | 210000045279 |
