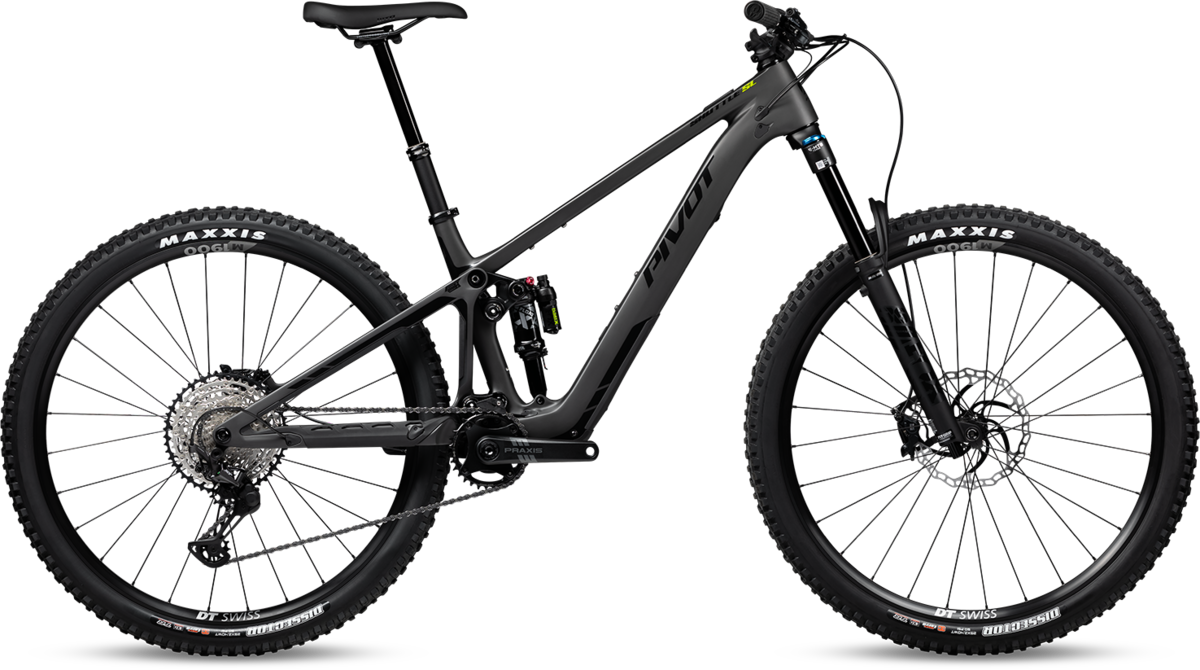

Pivot Cycles Shuttle SL Ride SLX/XT

Pivot Cycles Shuttle SL Ride SLX/XT
$9,000.00
Color: Black Lime
Size: Select size
Please select options Unavailable
NOTE: "In store" availability on bicycles includes some bikes still in boxes. Please contact us at (303)444-4196 to confirm build status. All E-bikes purchased will be charged an additional $15 battery recycling fee when picked up. ***This item is not permitted to be shipped, however it can be purchased online and picked up at your convenience.

Details

ACCELERATE
Flipping the script that most e-bike builders are following, we decided to focus on what matters - the dynamic of trail riding - and placed an emphasis on lightweight, refined suspension, crisp handling, and game-changing performance.

THE SPEED OF SILENCE
A 60Nm FAZUA motor, combined with a 430Wh battery, that is nestled in the downtube provides added punch to your ride, giving you the power to smash climbs and the pop for bigger moves, letting you ride farther, better, and faster. The motor and battery are situated low and close to the center of gravity - a key aspect of the Shuttle SL’s dynamic handling.

- Sleek Full Carbon Hollow Core Frame
- Seamless Integrated FAZUA Ride 60 Drive System
- Progressive Trail Geometry
- Flip Chip Geometry Customization
- Size Specific Chainstay Lengths
- 132mm Travel DW-Link Suspension
- Trunnion Mounted Float X
- 150mm Fox 36 Grip 2 with custom eMTB Tune
- Trail gripping Maxxis Dissector Tires
- Full-size water bottle fits inside the front triangle
- Pivot’s Cable Port System
- 60 Nm of Torque/ 450 Watts Peak Power
- Integrated 430 Watt/Hour Battery
- Superlight System 9.25lbs (4.2kg)
- 3 Assist Levels + Boost Mode
- Drag-free pedaling without assist
- Magnetic Charging Port & Cover

Sizes:
SIZESmallMediumLargeX-Large
Rider Height (In) 5'2" - 5'8" 5'7" - 6'0" 5'10" - 6'2" 6'1" +

Geometry and sizing

Sizes:
HIGH BB Setting
SIZE Small Medium Large X-Large
A-Seat Tube Length 36.8 cm 39.4 cm 43.2 cm 47 cm
B-Top Tube Length 59.7 cm 63.1 cm 64.5 cm 65.9 cm
C-Head Tube Length 9.5 cm 11.2 cm 11.7 cm 13 cm
D-Head Tube Angle 65.5° 65.5° 65.5° 65.4°
E-Seat Tube Angle (Eff.) 76.5° 76.5° 76.5° 77.2°
F-Chainstay Length 43 cm 43 cm 43.2 cm 43.6 cm
G-Bottom Bracket Height 35.2 cm 35.2 cm 35.2 cm 35.2 cm
H-Bottom Bracket Drop 2.14 cm 2.13 cm 2.12 cm 2.12 cm
I-Standover 67.4 cm 67.7 cm 68.2 cm 68.7 cm
J-Wheelbase 118.5 cm 122.2 cm 123.9 cm 127.1 cm
Stack 60.7 cm 62.2 cm 62.6 cm 63.8 cm
Reach 43.9 cm 46.9 cm 48.2 cm 50.4 cm
Sizes:
LOW BB Setting
SIZE Small Medium Large X-Large
A-Seat Tube Length 36.8 cm 39.4 cm 43.2 cm 47 cm
B-Top Tube Length 59.8 cm 63.2 cm 64.6 cm 66 cm
C-Head Tube Length 9.5 cm 11.2 cm 11.7 cm 13 cm
D-Head Tube Angle 65° 65° 65° 65°
E-Seat Tube Angle (Eff.) 76° 76° 76° 76.8°
F-Chainstay Length 43.2 cm 43.2 cm 43.4 cm 43.8 cm
G-Bottom Bracket Height 34.7 cm 34.7 cm 34.7 cm 34.7 cm
H-Bottom Bracket Drop 2.7 cm 2.7 cm 2.7 cm 2.7 cm
I-Standover 66.5 cm 66.8 cm 67.4 cm 67.8 cm
J-Wheelbase 118.6 cm 122.3 cm 124 cm 127.2 cm
Stack 61 cm 62.6 cm 63 cm 64.2 cm
Reach 43.5 cm 46.5 cm 47.8 cm 50 cm

Videos

Part Numbers

Option UPC MPN Store SKU
Black Lime / Small 196338167314 00SSLV129ASXA--BKLSMDRPINSA1 210000046728
Black Lime / Large 196338167154 00SSLV129ASXA--BKLLGDRPINSA1 210000045317
