Details

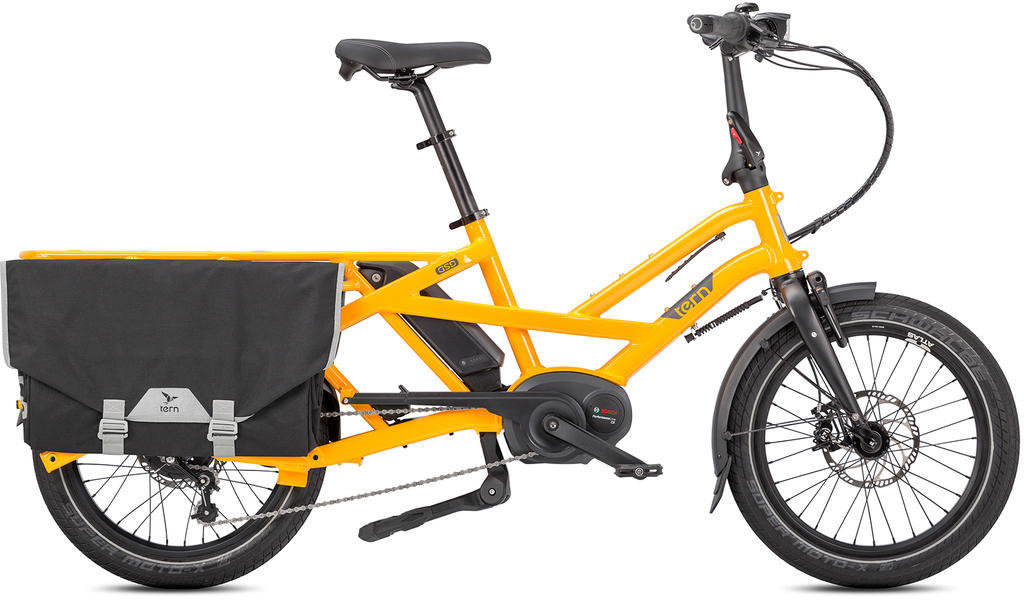

The GSD is designed to carry two kids, a week’s worth of groceries, or a load of cargo, but it’s only 180cm long—the same length as a standard ebike. With Tern’s best-in-class folding technology, it packs down small enough to fit in a VW Touran or an urban apartment. Plus, it adjusts to fit riders from 150 – 195cm—so mom, dad and the kids can all share it.
- Bosch Performance Line CX motor
- Bosch dual-battery system for a range of up to 125 miles
- Heavy-duty Enviolo cargo groupset
- Integrated Abus wheel lock, keyed alike with the battery
- Magura MT5 4-piston hydraulic disc brakes
- Custom 62mm Schwalbe Super Moto-X tires with puncture protection
- Cargo Hold Panniers and frame-integrated rack
- Boost thru-axle hubs
- Andros stem for handlebar height and reach adjustments
- Wide range of accessories to fit any rider’s needs
- Fits two Thule Yepp Maxi child seats, or one Thule Yepp Nexxt Maxi seat—no adapters needed
WARNING: This product can expose you to chemicals known to the state of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Specs
Motor | Bosch Performance CX, 36V/250W, max speed 25 kph (EU); max speed 20 mph (US), max torque 75 Nm |
---|---|
Battery | Bosch Dual Battery system, 500Wh single / 1000Wh dual |
Display | Bosch Purion, 4 mode selectable, walk assist |
Range | 500Wh: 50-100km (32-62mi); 1000Wh: 100-200km (62-125mi) |
Frame | Tern GSD, 7005-Al, patented MultiTruss design |
Fork | Tern GSD, 1.5" Taper, Boost Thru-Axle, 110 mm, 7005-AL |
Headset | Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated |
Axles |
Front: 110 x 15mm Rear: 148 x 12mm |
Rims/Wheels | Tern Atlas, ultra wide 36mm, dual reinforced joint |
Hubs |
Front: Tern Atlas, Boost Thru-Axle, sealed cartridge bearing Rear: Enviolo Cargo Groupset, 380% continuously variable gear range, Boost Thru-Axle |
Spokes | Stainless steel, 13G |
Tires | Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex |
Crankset | Tern GSD custom, forged 6061-AL DH crankarm |
Bottom Bracket | Motor integrated |
Chain | KMC for eBike, EPT corrosion resistant coating |
Rear Derailleur | Chain tensioner, dual-pulley |
Cassette/Rear Cogs | 20T |
Shifters | Enviolo CA, Twist |
Handlebars | Tern Sweep, 27 degrees, 6061-AL, Tern Andros adapted |
Tape/Grips | Ergon GC10, for swept bar |
Brake Levers | Magura, hydraulic |
Brakes | Magura MT5, 4-piston hydraulic disc, 180mm rotors |
Pedals | Urban with non-slip surface, sealed bearings |
Saddle | Tern GSD, with rear handle |
Seatpost | Tern Telescope, 34.9 mm, 2014-AL |
Accessories & Extras | Bell, SKS Chainblade, Heavy-duty double stand, Tern Valo Direct front light, Herrmans H-Trace rear light, SplashGuard fenders, frame-integrated rack, ABUS 5650L lock |
* Subject to change without notice.
